Mazda 3 Service Manual: Windshield Washer Hose Removal/Installation

1. Remove the following parts:

a. Windshield wiper arm and blade.

b. Front fender molding.

c. Cowl grille.

d. Front mudguard (RH).

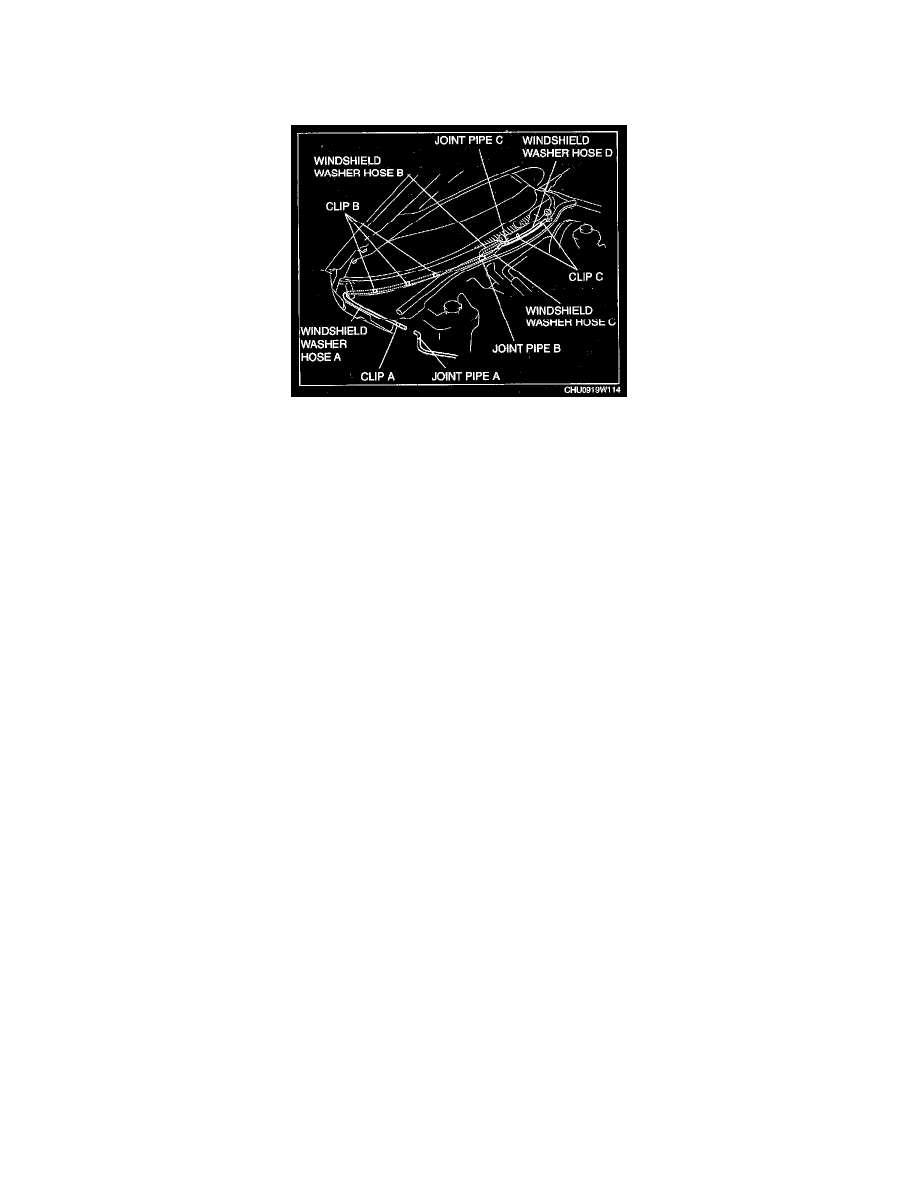

2. Disconnect joint pipes, then remove windshield washer hose B, C and D.

3. Remove the windshield washer hose B.

4. Disconnect windshield washer hose C from the washer nozzle.

5. Remove the windshield washer hose C.

6. Disconnect windshield washer hose D from the washer nozzle.

7. Remove the windshield washer hose D.


8. Disconnect the windshield washer hose A from the windshield washer motor.

9. Remove the clip A and B.

10. Disconnect joint pipes, then remove windshield washer hose A.

11. Remove the windshield washer hose A.


12. Install in the reverse order of removal.
