Warning: Refer to Approved Equipment for Collision Repair Warning in the Preface section.

Warning: Refer to Glass and Sheet Metal Handling Warning in the Preface section.

  1. Disable the SIR System. Refer to SIR   Disabling and Enabling.
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
  3. Remove all related panels and components.
  4. Visually inspect the damage. Repair as much of the damage as possible.
  5. Remove the sealers and anti-corrosion materials from the repair area, as necessary. Refer to Anti-Corrosion Treatment and Repair.

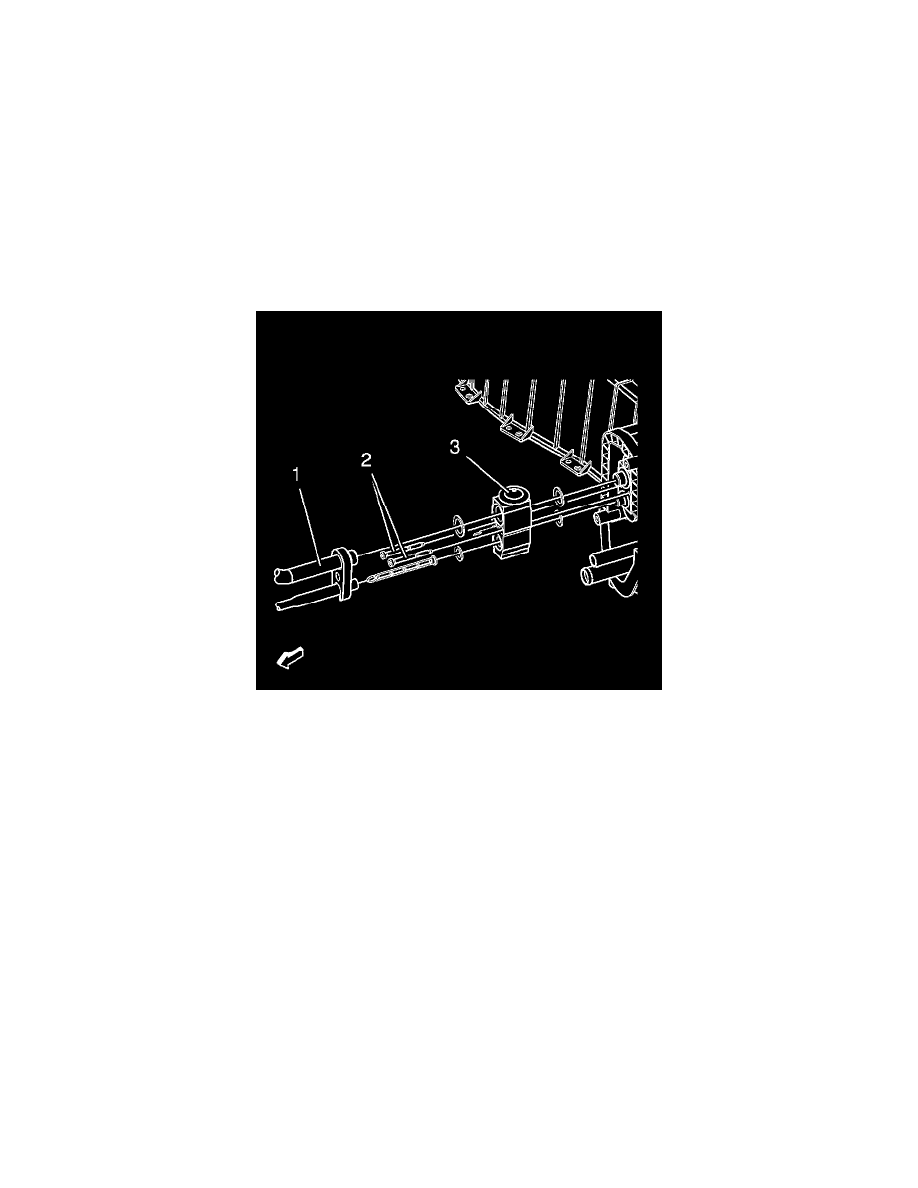

  1. Locate and mark all the necessary factory welds of the body rear end panel.

Note:Note the number and location of welds for installation of the service assembly.

  1. Drill all factory welds.

  1. Remove the body rear end panel.
Installation Procedure
Note: If the location of the original plug weld holes can not be determined, space the plug weld holes every 40 mm (1½ in). Drill 8 mm (5/16 in) for plug welding along the edges of th ...
